MCB2900 User's Guide
Power Supply
Power is supplied to the MCB2900 board on your PC using a standard USB connector.

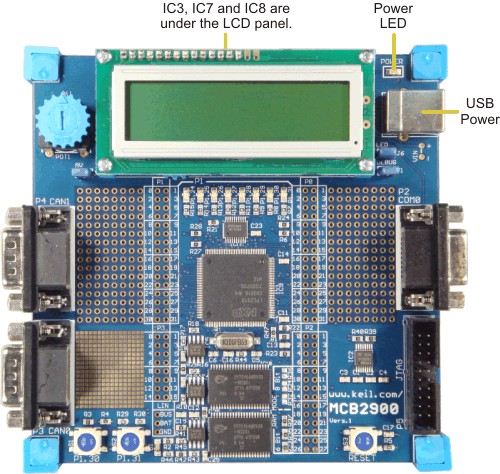

The voltage regulators (IC3), (IC7) and (IC8) generate 3.3 Volts DC, 1.8 Volts DC and 5.0 Volts DC, respectively. The Power LED indicates when power is applied to the board.
Caution: Do not attach additional power supplies (such as batteries) while the USB supplies power to the MCB2900. This may harm your PC!
