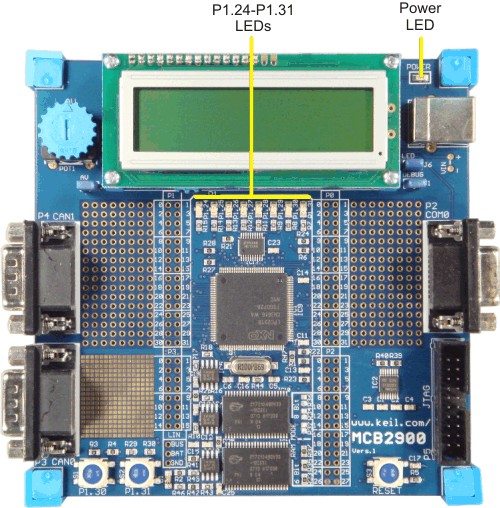

The LEDs on the MCB2900 board are:
- The POWER LED indicates that power is present on the board.
- P1.24 - P1.31 connect to eight Port 1 pins when jumper J6 is installed. These LEDs are useful for indicating program status while testing your applications. Removing Jumper J6 disables the Port LED driver chip (IC12).
