MCB2900 User's Guide

LCD Panel

The LCD panel contains 16 characters × 2 lines and connects using an 8-bit interface.  The LCD Contrast control adjusts the brightness and contrast of the LCD display.

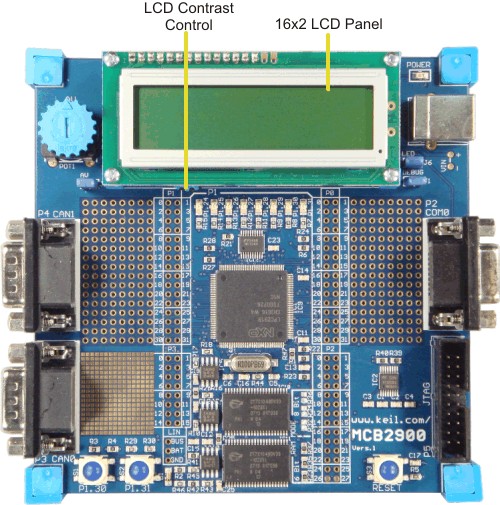

MCB2900 Board LCD Panel
