MCB2900 User's Guide
Microcontroller

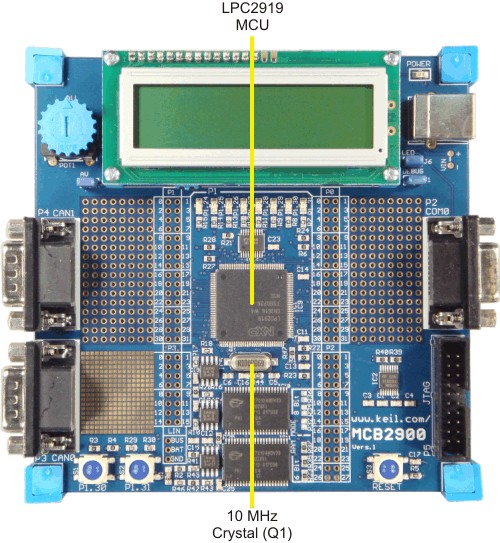

The NXP LPC2919 microcontroller (IC1) provided with the MCB2900 board is a high-end LPC29xx device with advanced ADC, DAC and CAN capabilities.
A 10.0 MHz crystal (Q1) provides the clock signal for the CPU.
