CAN Interface

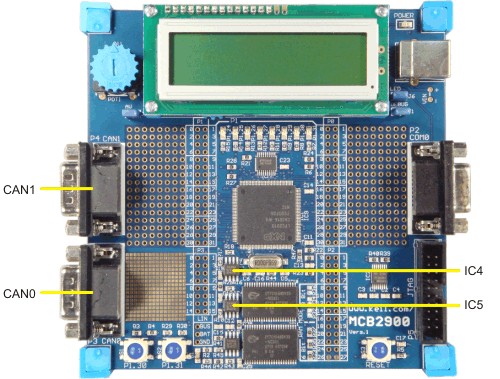

The dual CAN Interfaces use the TJA1040 CAN driver (IC4 for CAN0 and IC5 for CAN1) and termination resistors (R10 and R16 for CAN0 and R17 and R18 for CAN1) on the MCB2900 board.

MCB2900 Board CAN

The CAN0 and CAN1 DB9 connectors are wired identically (Pin 2 provides the CANL signal and Pin 7 provides the CANH signal) and each is connected to a TJA1040 CAN driver IC.

MCB2900 CAN DB9 Connector

Note

  • CAN termination resistors make it easy to connect the MCB2900 board to your CAN network but they are not always required. When connecting the MCB2900 Board to a CAN network, you may need to remove the termination resistors.
