Push Buttons

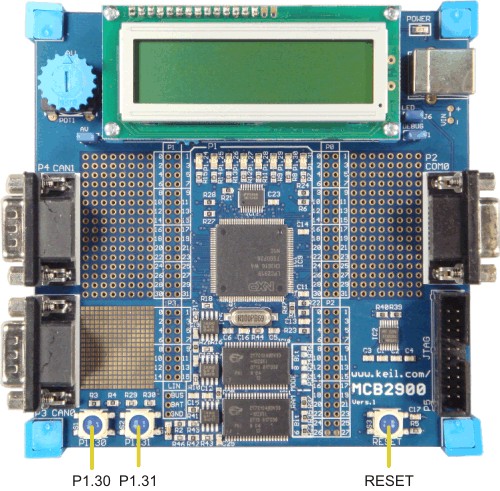

The three push buttons on the MCB2900 board are:
- The RESET push button connects to the reset circuit. This resets the microcontroller.
- The P1.30 push button momentarily connects Port 1.30 of the microcontroller to ground.
- The P1.31 push button momentarily connects Port 1.31 of the microcontroller to ground.
