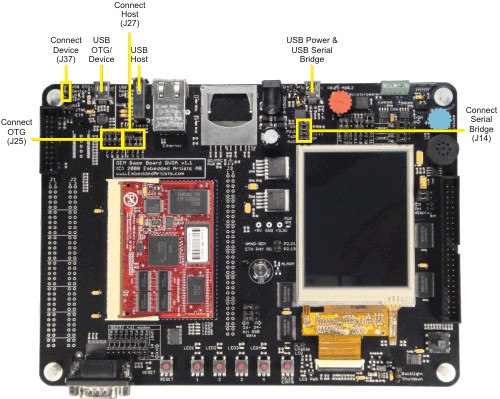

The USB Interface supports three standard USB connectors on the MCB2470 board:
- A mini-USB connector for power and USB to UART0 interface
- A mini-USB connector for USB-OTG/Device interface
- A USB A connector for USB Host interface
Jumpers at J14 must be installed to enable the UART#0 over the USB bridge capability.
Install jumpers at J25 to enable the ISP1301 signals for USB/OTG operation.
Install a jumper in the top position at J37 to allow the board to always connect as a USB device. Move the jumper to the lower position allow P0.14 to enable USB Device mode.
Install jumpers at location J27 to when connecting as a USB host.
