MCB2470 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface ETM Interface LEDs Serial Ports CAN Interface Ethernet Interface SD/MMC Connector USB Interface Push Buttons Potentiometers Speaker QVGA Module Accelerometer IrDA Writing Programs Example ProgramsSpeaker

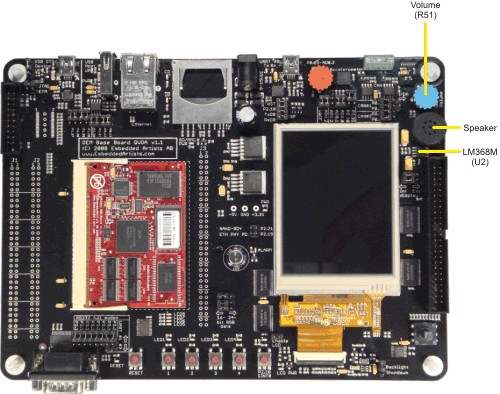

The MCB2470 board includes a speaker controlled by the output of the on-chip D/A converter, and the volume control (R51). The LM386M low voltage power amplifier (U2) amplifies the D/A output to drive the speaker.
The D/A output (Port 0, pin 26, P0.26/AOUT) is connected to the input of the LM386M amplifier via R51 allowing the D/A output to control the gain of this amplifier and the volume of the speaker.
