MCB2470 User's Guide
Introduction
Setup
Theory of Operation
Block Diagram
Schematics
Technical Data
Prototyping Area
Microcontroller
Power Supply
Configuration
JTAG Interface
ETM Interface
LEDs
Serial Ports
CAN Interface
Ethernet Interface
SD/MMC Connector
USB Interface
Push Buttons
Potentiometers
Speaker
QVGA Module
Accelerometer
IrDA
Writing Programs
Example Programs
Microcontroller

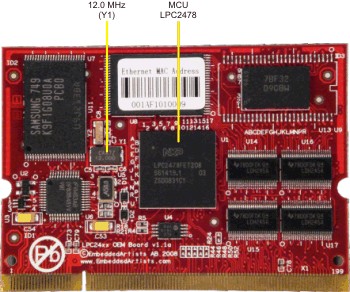

The NXP LPC2478 microcontroller (U1 on the OEM board) provided with the MCB2470 board is a high-end LPC24xx device with advanced ADC, DAC and USB capabilities.
A 12.0 MHz crystal (Y1) provides the clock signal for the CPU.
