MCB2470 User's Guide

Accelerometer

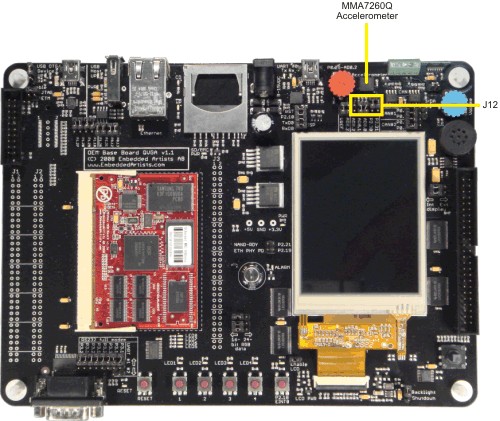

The MCB2470 board includes a 3-axis accelerometer at location U14.

The right-hand 5 jumpers at J12 connect the X, Y and Z axis and G-force parameter input to the following pins on P0:

• J12 1-2 Connects AD0.2(P0.25) to the Z-axis output.
• J12 3-4 Connects AD0.1(P0.24) to the Y-axis output.
• J12 5-6 Connects AD0.0(P0.23) to the X-axis output.
• J12 7-8 Connects DQM2(P0.30) to the G-Select1 input.
• J12 9-10 Connects DQM3(P0.31) to the G-Select2 input.
