MCB2400 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Serial Ports CAN Interface Ethernet Interface SD/MMC Connector USB Interface Push Buttons Potentiometers Speaker QVGA Module Writing Programs Example ProgramsSerial Ports

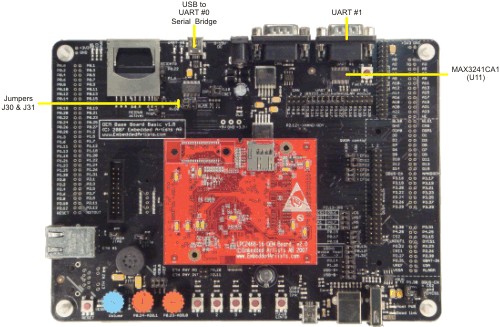

The MCB2400 board connects the ASC0 on-chip serial UART to the MAX3243CA1 (U11), which converts the logic signals to RS-232 voltage levels. The ASC0 UART may be used in bootstrap mode to download other utilities for debugging or downloading flash.
The UART#0 USB connector can supply power to the board and be configured as a USB serial bridge for UART0 using jumpers J30 and J31.
The UART#1 DB9 connector is wired as an 8-wire RS232 modem interface as shown in the figure below.
