MCB2400 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Serial Ports CAN Interface Ethernet Interface SD/MMC Connector USB Interface Push Buttons Potentiometers Speaker QVGA Module Writing Programs Example ProgramsPower Supply

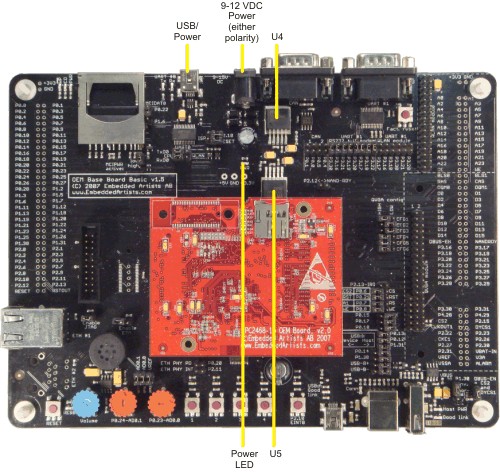

Power is supplied to the MCB2400 board on your PC by using a standard mini-USB connector, or 9-12 VDC power adapter.
The voltage regulators (U5) and (U4) generate 3.3 Volts DC and 5.0 Volts DC, respectively. The Power LED indicates when power is applied to the board.
Caution: Do not attach additional power supplies (such as batteries) while the USB supplies power to the MCB2400. This may harm your PC!
