MCB2400 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Serial Ports CAN Interface Ethernet Interface SD/MMC Connector USB Interface Push Buttons Potentiometers Speaker QVGA Module Writing Programs Example ProgramsPotentiometers

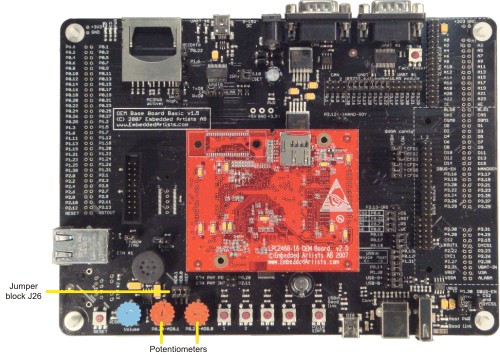

The two potentiometers on the MCB2400 board connect to Port 0.23 (AD0.0) and Port 0.24 (AD0.1) when enabled by the jumpers at the J26 jumper block.
Jumpering pins 1 and 2 of J26 supplies VREF voltage to both potentiometers.
Jumpering pins 3 and 4 of J26 connects the analog voltage from the potentiometer to Port 0, pin 23 (AD0.0).
Jumpering pins 5 and 6 of J26 connects the analog voltage from the potentiometer to Port 0, pin 24 (AD0.1).
