MCB2400 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Serial Ports CAN Interface Ethernet Interface SD/MMC Connector USB Interface Push Buttons Potentiometers Speaker QVGA Module Writing Programs Example ProgramsPush Buttons

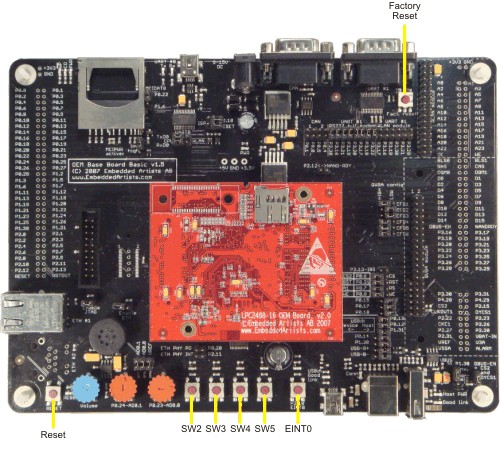

The push buttons on the MCB2400 board are:
- The Factory Reset push button restores the the optional WLAN module to factory settings. The WLAN expansion module is not included the MCB2400 kit.
- The RESET push button connects to the reset circuit. This resets the microcontroller.
- The P2.10/EINT0 push button connects to the external interrupt 0 (EINT0) of the microcontroller.
- Push buttons 1 through 4 (SW2 - SW5) are available for general use via I2C.
