MCB2400 User's Guide
Introduction Setup
Board Setup Board Components Connecting with ULINK Setting the JTAG Clock Connecting with Serial ISP Verifying the COM Connection Connecting the QVGA Module Configuring the MCB2400 Jumper Descriptions Theory of Operation Writing Programs Example ProgramsConnecting the QVGA Module
Although the MCB2400 board does not require the QVGA module, for applications that require it, the installation is easy.
To connect the QVGA Module to the MCB2400 base board:
- Disconnect the power cable and ULINK2 JTAG adapters from the MCB2400 base board.

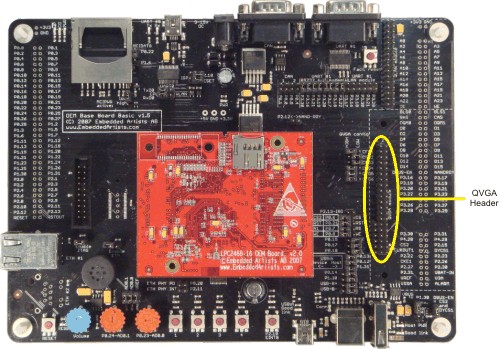

- Locate the QVGA module 20x2 header on the MCB2400 Base Board.
- Align the connector on the underside of the QVGA board with the 20x2 header.
- After visually making sure all of the pins are aligned, gently and evenly push down on the left side of the QVGA module until it is seated.
The following picture shows the QVGA module attached to the MCB2400 base board.
A graphical user interface (GUI) shipped as "C" source code is available for MCB2400 Board with QVGA Module.
For further information see news article SEGGER emWin for MCB2460.
