USBHID - Human Interface Device

The Human Interface Device (HID) program allows the MCB2400 to act as a Windows HID while attached to your PC using a USB interface. With this program and the HIDClient.exe program, you can:

  • Control the LEDs on the MCB2400 board, and
  • Respond to presses of the Push Buttons 1..4

all from a dialog box in a standard Windows program.

Loading USBHID

To load the USBHID project, select Open Project from the root\ARM\BOARDS\KEIL\MCB2400\USBHID folder.

Project menu, and open the HID.UV2 project from the

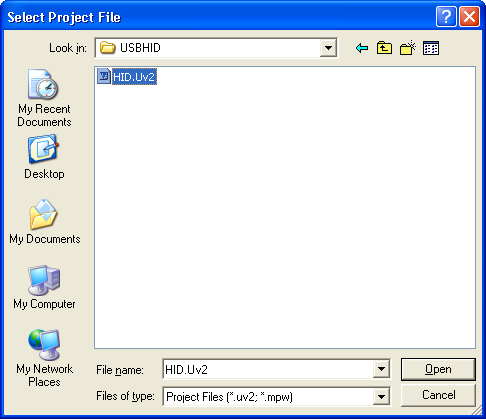

Select Project File Dialog

Project Workspace

When the HID project opens, the µVision Project Workspace window displays the source files that make up the project.

  • LPC2400.s: CPU startup file for the NXP LPC24xx devices.
  • usbcfg.h: USB custom configuration file for several USB features.
  • usbhw.c: USB hardware layer for NXP LPC2468.
  • usbcore.c: USB core module that implements the basic USB communication layer.
  • usbuser.c: USB common module.
  • usbdesc.c: USB device description.
  • hiduser.c: HID custom module.
  • demo.c: contains the main program and the HID report functions.

The Abstract.txt file contains documentation about the project.

Editing USBHID

You may edit or review the source code. Double click on the source code file in the Files page of the Project Workspace window. µVision loads and displays the contents in an editor window.

Running USBHID

Perform the following four steps to run the USBHID Example on the MCB2400 Evaluation Board:

  1. Building USBHID
  2. Downloading USBHID
  3. Running USBHID
  4. Debugging USBHID
