Checking Program Output

To check the serial output from the BLINKY program, connect a Male/Female DB9 serial cable (no longer than 10ft/3m) from the serial port connector UART #1 on the board to an unused COM port on your development PC. Use a terminal emulation program, such as Microsoft Windows HyperTerminal, to display the serial data on your PC monitor.

To start the Microsoft Windows HyperTerminal application, select Start — Programs — Accessories — Communication — HyperTerminal.

  1. Enter a Name for the new connection, for example: MCB2400.

    HyperTerm Connection Description Dialog
  2. Select the PC COM port COM1 under Connect Using.

    HyperTerm Connect To Dialog
  3. Select 9600 Bits per second, 8 Data bits, Parity None, Stop bits 1 and Flow control None.

    HyperTerm Properties Dialog

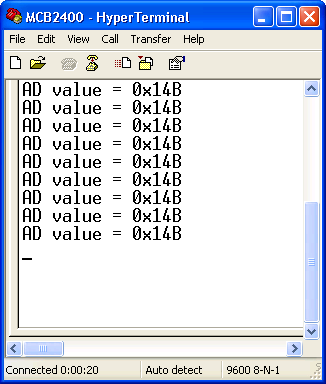

  4. Click OK. The serial message containing the value of AD00 from the MCB2400 board displays continuously in the HyperTerminal window, as shown below. Adjusting the potentiometer on the MCB2400 board changes the AD Value value displayed.

    Hyperterm screen showing AD Value results.
