All MCB2300 boards contain a standard USB "B" connector that supplies power to the board and allows the board to be configured as a USB device.
MCB2360/MCB2370 Board USB Connector
The MCB2387 and MCB2388 boards contain two additional USB connectors:
- a mini-USB connector for USB-OTG (On-The-Go) applications.
- a USB "A" connector for USB hosting applications.

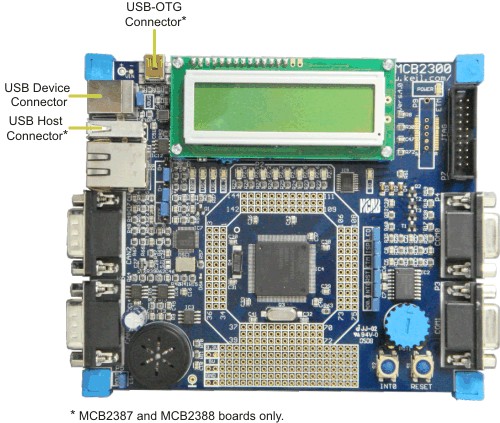

MCB2387/MCB2388 Board USB Connectors
