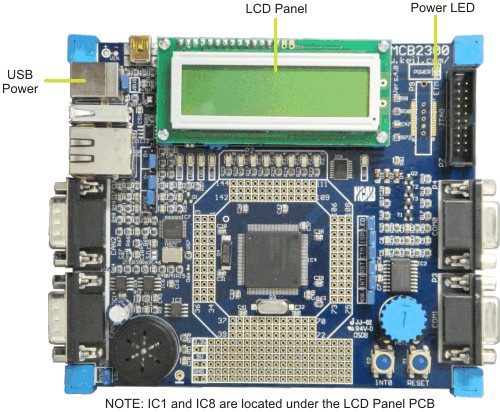

Power is supplied to the MCB2300 board on your PC using a standard USB "B" connector.
The voltage regulators (IC1) and (IC8) generate 3.3 Volts DC and 5.0 Volts DC, respectively. The Power LED indicates when power is applied to the board.
Caution: Do not attach additional power supplies (such as batteries) while the USB supplies power to the MCB2300. This may harm your PC!
