MCB2300 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LCD Panel LEDs Push Buttons Potentiometer Speaker Serial Ports CAN Interface USB Interface Ethernet Interface SD Connector Writing Programs Example ProgramsLEDs

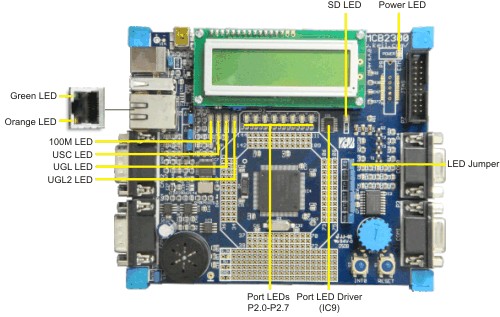

The LEDs on the MCB2300 board are:
- The POWER LED indicates that power is present on the board.
- P2.0 - P2.7 connect to eight Port 2 pins when jumper J11 is installed. These LEDs are useful for indicating program status while testing your applications. Removing Jumper J11 disables the Port LED driver chip (IC9).
- The 100M LED indicates a 100Mbit Ethernet LAN connection.
- The ORANGE LED (right/lower) on the Ethernet connector indicates LAN traffic is present.
- The GREEN LED (left/upper) on the Ethernet connector indicates a good link connection to the LAN.
- The USC LED indicates a USB soft connect from P0.14.
- The UGL LED indicates a good USB link.
- The SD LED indicates that an SD card is detected.
