To check the VOICE program's serial output, connect a Male/Female DB9 serial cable (no longer than 10ft/3m) from the COM1 serial port on the board to an unused COM port on your development PC. Use a terminal emulation program, such as Microsoft Windows HyperTerminal, to display the serial data on your PC monitor.
Note
- The MCB2140 Evaluation Board is a superset of the MCB2130 Evaluation Board. All MCB2130 examples (BLINKY, SOUND, and VOICE) work with the MCB2140.
To start the Microsoft Windows HyperTerminal application, select Start — Programs — Accessories — Communication — HyperTerminal.
Enter a Name for the new connection, for example: MCB2130.
Select the PC COM port COM1 under Connect Using.

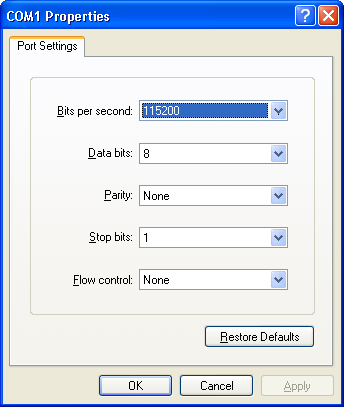

Select 115200 Bits per second, 8 Data bits, Parity None, Stop bits 1 and Flow control None.

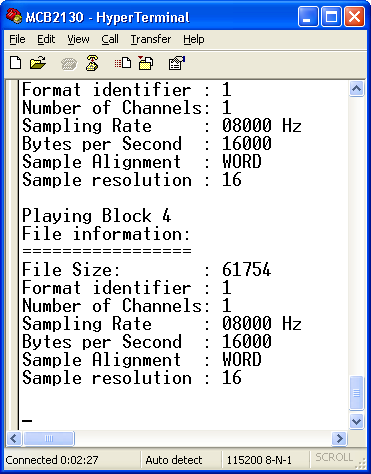

Click OK. As the program runs, information about each WAVE data track that you hear displays in the HyperTerminal window.
