MCB2130 User's Guide
Introduction Setup Theory of Operation
Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Speaker Serial Ports Writing Programs Example ProgramsPrototyping Area

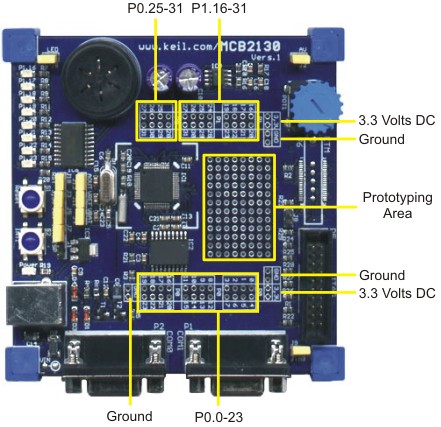

The prototyping area provides connection points for ports P0 and P1, +3.3VDC (Vcc) and ground (GND).
Note
- All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
