Power Supply

Power is supplied to the MCB2130 board using a standard USB connector.

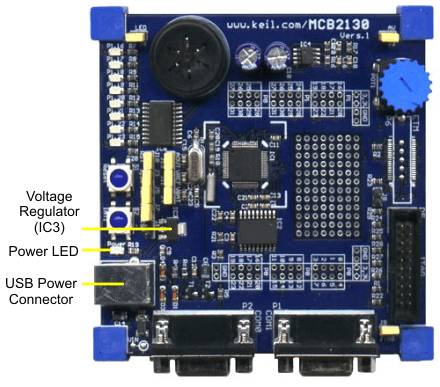

The voltage regulator (IC3) generates 3.3 Volts DC. The Power LED indicates when power is applied to the board.

Caution: Do not attach additional power supplies (such as batteries) while MCB2130 is powered by USB. This may harm your PC!
