Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Speaker Serial Ports Writing Programs Example ProgramsMicrocontroller

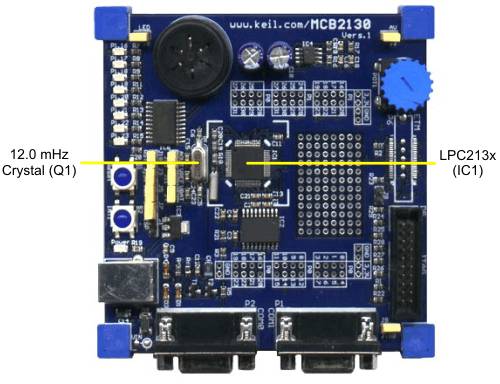

The NXP LPC213x microcontroller (IC1) provided with the MCB2130 board is a high-end LPC213x device with advanced ADC and DAC capabilities.
A 12.0 MHz crystal (Q1) provides the clock signal for the CPU.
