MCB2130 User's Guide
Introduction Setup Theory of Operation
Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Speaker Serial Ports Writing Programs Example ProgramsPush Buttons

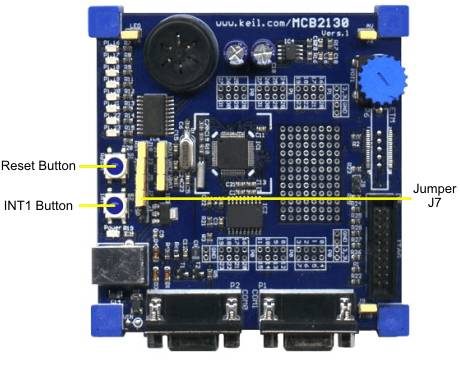

The two push buttons on the MCB2130 board are:
- The RESET push button connects to the reset circuit. This resets the microcontroller.
- The INT1 push button connects to the external interrupt 1 (EINT1) of the microcontroller. Removing Jumper J7 disables this button.
