MCB2130 User's Guide
Introduction
Setup
Board Setup Board Components Connecting with ULINK Connecting with Serial ISP Verifying the COM Connection Configuring the MCB2130 Jumper Descriptions Theory of Operation Writing Programs Example ProgramsBoard Setup
The MCB2130 Evaluation Board is a USB-powered device.

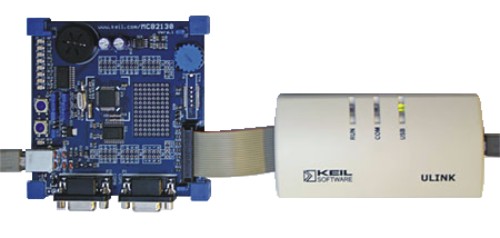

The MCB2130 Evaluation Board connects directly to the Keil µVision Debugger using the Keil ULINK USB-JTAG Adapter, so no additional software is required on the board.
The MCB2130 Evaluation Board connects to a PC via a standard USB cable that provides power.
