Prototyping Area

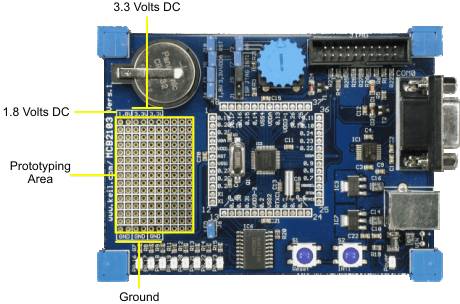

The prototyping area provides blocks for connecting the address and data line, ports P0 and P1, +1.8VDC, +3.3VDC(Vcc) and ground(GND).

Note

• All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
