Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Serial Port Writing Programs Example ProgramsPotentiometer

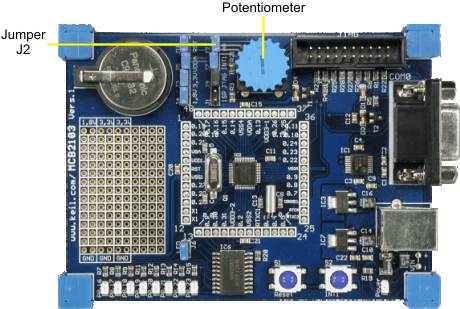

The potentiometer on the MCB2103 board connects to Port 0.24 (AIN2) when the Jumper J2 is enabled. The voltage range is 0.0-3.3 Volts.
