MCB2103 User's Guide
Introduction
Setup
Theory of Operation
Block Diagram
PCB Illustration
Schematics
Technical Data
Prototyping Area
Microcontroller
Power Supply
Configuration
JTAG Interface
LEDs
Push Buttons
Potentiometer
Serial Port
Writing Programs
Example Programs
Microcontroller

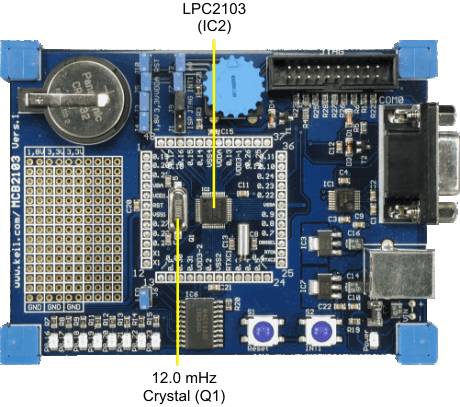

The NXP LPC2103 microcontroller (IC2) provided with the MCB2103 board is a high-end LPC2103 device with advanced ADC capabilities.
A 12.0 MHz crystal (Q1) provides the clock signal for the CPU.
