Introduction

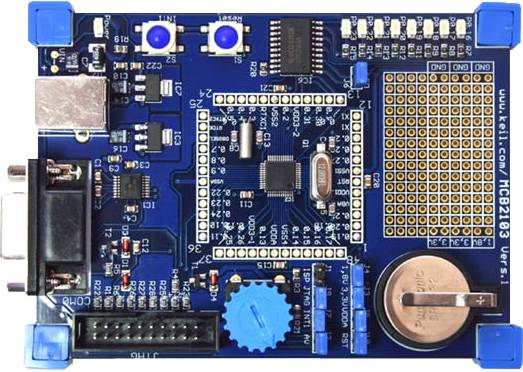

The Keil MCB2103 Evaluation Board allows you to generate and test application programs for the NXP LPC2101, LPC2102 and LPC2103 microcontroller family. With this hands-on process, you can determine hardware and software requirements for current and future product development.

The MCB2103 Evaluation Board ships with a NXP LPC2103 microcontroller which is a superset of several other device variants of the NXP LPC2100 microcontroller series. The MCB2103 Board contains all hardware components required in a single-chip LPC2100 system, plus an on-board lithium battery to maintain the real-time clock and a potentiometer to generate analog voltage input.
