Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Serial Ports CAN Interface Writing Programs Example ProgramsPotentiometer

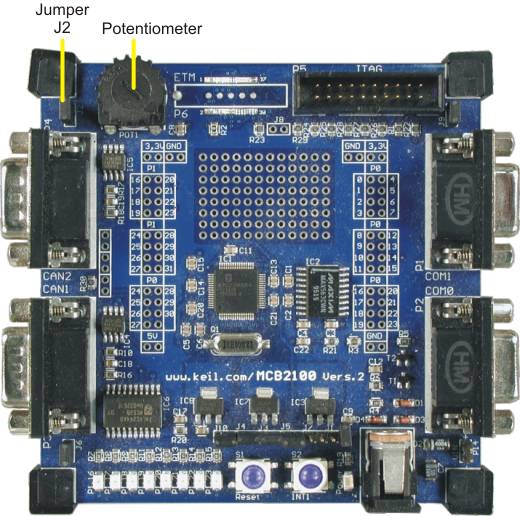

The potentiometer on the MCB2100 board connects to Port 0.27 (AIN0) when the J2 jumper is enabled. The voltage range is 0.0-3.3 Volts.
