MCB2100 User's Guide
Introduction Setup Theory of Operation
Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Serial Ports CAN Interface Writing Programs Example ProgramsMicrocontroller

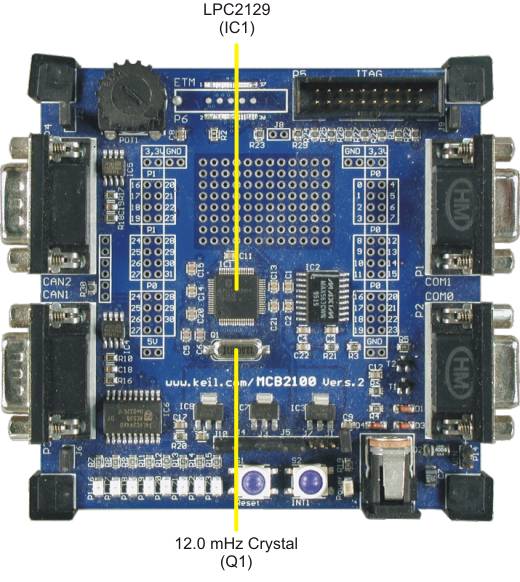

The NXP LPC2129 microcontroller (IC1) provided with the MCB2100 board is a high-end ARM7-TDMI-S device with 256KB on-chip Flash, 16KB RAM, SPI, I²C, PWM, 10-bit ADC and dual CAN.
A 12.0 MHz crystal (Q1) provides the clock signal for the CPU.
