MCB2100 User's Guide
Introduction Setup Theory of Operation Writing Programs Example Programs BLINKY
Building BLINKY Downloading BLINKY Debugging BLINKY Checking Serial Output BLINKYCAN Building BLINKYCAN Downloading BLINKYCAN Debugging BLINKYCAN Checking Serial Output BLINKY IRQ Debug I/OChecking Serial Output
To check the serial output from the BLINKYCAN program, connect a 3 meter, Male/Female DB9 serial cable from the COM1 serial port on the board to an unused COM port on your development PC. Use a terminal emulation program, such as Microsoft Windows HyperTerminal, to display the serial data on your PC monitor.
To start the Microsoft Windows HyperTerminal application, select Start — Programs — Accessories — Communication — HyperTerminal.
Enter a Name for the new connection, for example: MCB2100.
Select the PC COM port COM1 under Connect Using.

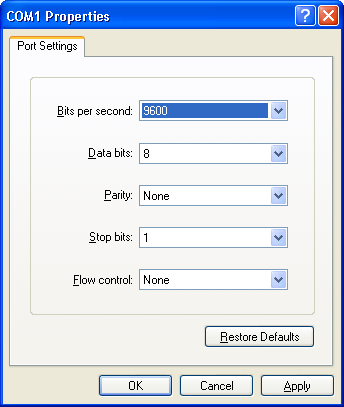

Select 9600 Bits per second, 8 Data bits, Parity None, Stop bits 1 and Flow control None.

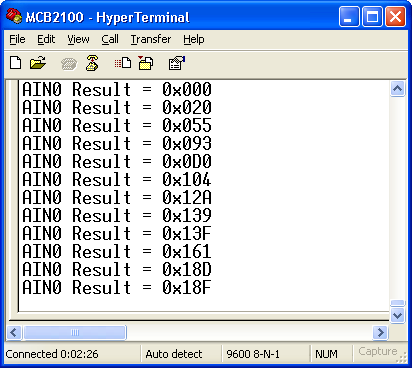

Click OK. The serial message containing the value of AIN0 from the MCB2100 board displays continuously in the HyperTerminal window, as shown below. Adjusting the potentiometer on the MCB2100 board changes the AIN0 Result value displayed.
