MCB1800/4300 User's Guide
External Memory

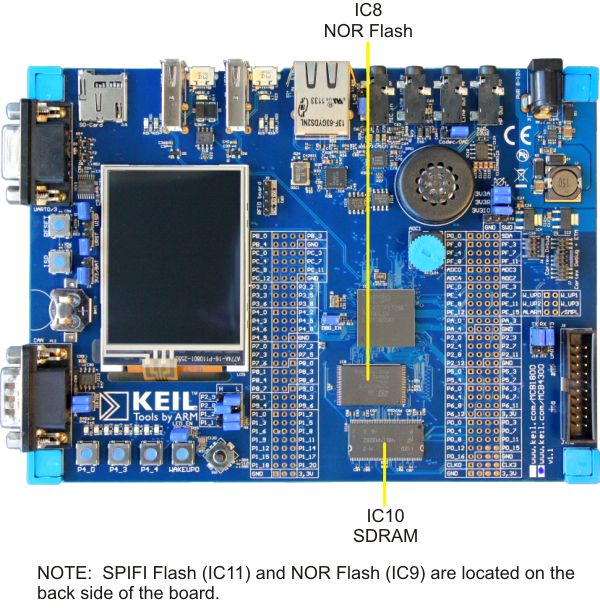

In addition to the Flash and RAM internal to the LPC1850 (or LPC4350) MCU, the MCB1800/4300 board contains the following external memory:
- 16 MB External SDRAM (IC10) connected to the 32-bit bus.
- 16 MB External NOR Flash (IC8 and IC9, 8Mbytes each) connected to the 32-bit bus.
- 4 MB External Quad SPI Flash (IC11) connected to the SPIFI interface.
Chip Select and Addressing for External Memory
The table below identifies the chip select, pin and address area for the external memory devices on the MCB1800 board.
| Device | Chip Select / Pin | Address Area |
|---|---|---|
| NOR Flash | CS0 / P1_5 | 0x1C000000 - 0x1CFFFFFF |
| SDRAM | EMC_DYCS0 / P6_9 | 0x28000000 - 0x28FFFFFF |
| Quad SPI Flash | SPIFI_CS / P3_8 | 0x80000000 - 0x803FFFFF (Mirrored at 0x14000000 - 0x143FFFFF. Load applications at 0x14000000 - 0x143FFFFF to debug them.) |
