MCB1800/4300 User's Guide
JTAG/Cortex Debug Interface

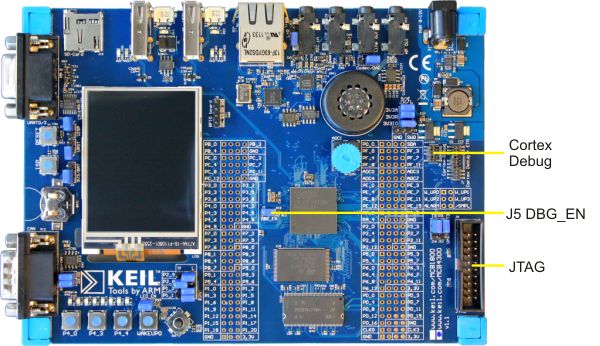

The JTAG/Cortex Debug Interface connector provides debugging and emulator support for the LPC1850 device. The JTAG/Cortex Debug Interface allows application debugging and programming of on-chip and off-chip Flash devices. Jumper J5 DBG_EN must be installed for proper operation of the JTAG/Cortex Debug interface.

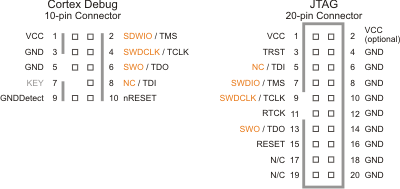

The standard JTAG 20-pin connector works with the Keil ULINK and many third party tool vendors. The Cortex Debug connectors work with the Keil ULINK2, ULINK-ME and ULINKpro adapters, plus many third party tool vendors.
Serial Wire Mode Interface
The MCB1800 board also supports the Serial Wire Mode of Cortex-M3 based devices. In Serial Wire mode, only the pins TCLK and TMS are used. TDO is an optional trace data output pin.
