MCB1800/4300 User's Guide
Push Buttons

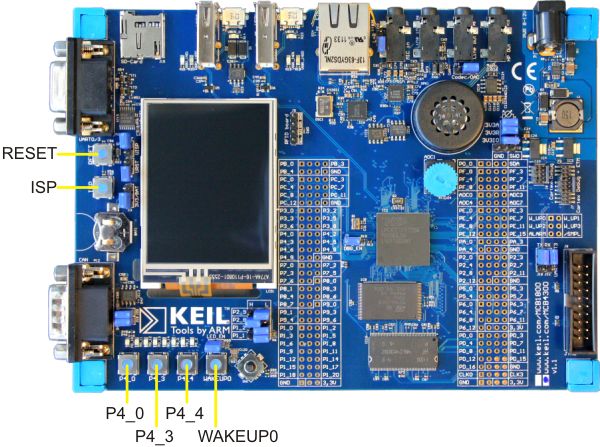

The six push buttons on the MCB1800 board are:
- The RESET push button connects grounds the active-low external reset pin of the microcontroller and is connected to the power-up reset circuit. This resets the microcontroller.
- The ISP push button grounds P2_7 pin on the microcontroller. Holding down this button during a reset enables ISP flashing via the boot source configured using the Boot Configuration Jumpers.
- The P4_0, P4_3 and P4_4 push buttons connects to port pins P4_0, P4_3 and P4_4 of the LPC1850 device and are available for general use.
- The WAKEUP0 push button connects to pin W_UP0 of the microcontroller. This wakes up the microcontroller out of sleep mode.
