Schematics

Detailed schematics are available in large format on the MCB1700 Evaluation Board information section of the Keil web site.

For MDK V5 installations, if you have installed the Keil:MCB1700 Device Family Pack (DFP), you can view the MCB1700 schematic PDF installed on your PC. Open an MCB1700 example project, such as Blinky, click the Books tab in the Project Window, then click the Schematics (MCB1700) in the Board Data Books section.

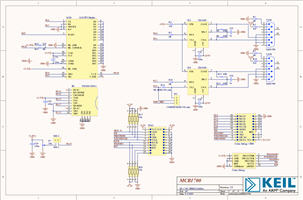

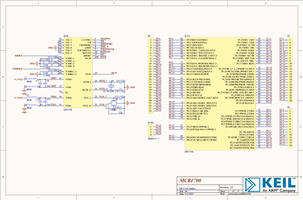

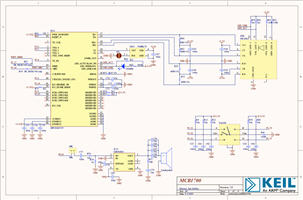

MCB1700 Base Board Schematics

MCB1700 Schematics
MCB1700 Schematics
MCB1700 Schematics
MCB1700 Schematics
MCB1700 Schematics
MCB1700 Schematics

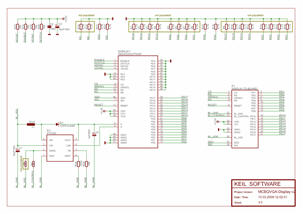

MCB1700 Display Board Schematics

MCB1700 Display Board Schematics
