MCB1700 User's Guide
Potentiometer

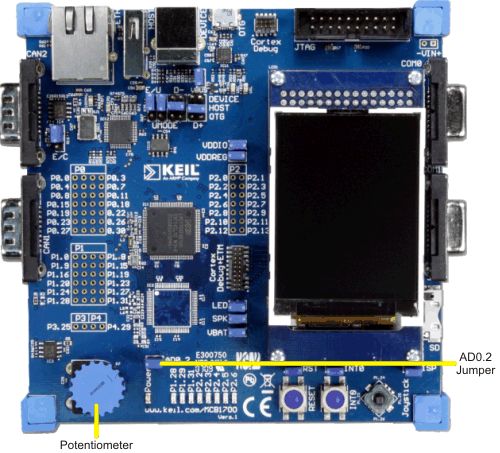

The potentiometer on the MCB1700 board connects to Port 0.25 (AD0.2) when the Jumper AD0.2 is enabled. The voltage range is 0.0-3.3 Volts.
