LCD Panel

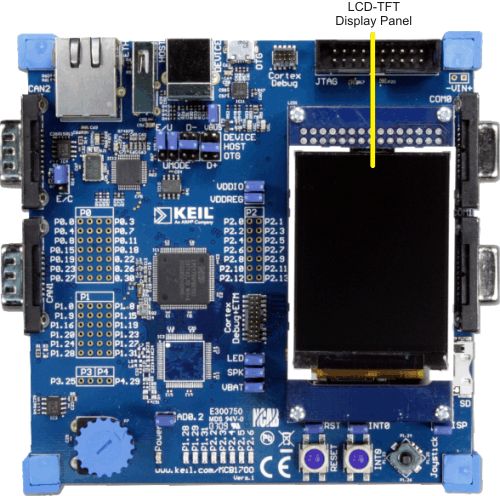

The LCD-TFT color graphics display panel contains a 240x320 pixel screen and connects using a 16-bit interface. The LCD panel connects to MCB1700 board via 30-pin header.
