MCB1700 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply JTAG Interface ETM Interface LCD Panel LEDs Push Buttons Joystick Potentiometer Speaker Serial Ports CAN Interface USB Interface Ethernet Interface MicroSD Connector Writing Programs Example ProgramsJTAG Interface

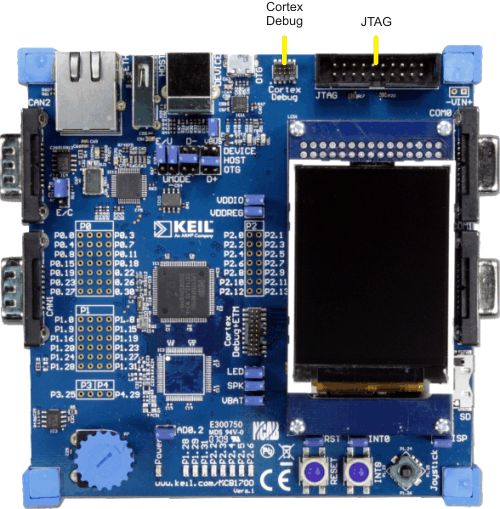

The JTAG Interface connector provides debugging and emulator support for the NXP LPC17xx device. The JTAG Interface allows application debugging and programming of on-chip and off-chip Flash devices.
The Cortex Debug connector provides support for Serial Wire JTAG feature of the Cortex-M3 device. Serial Wire JTAG is capable of Serial Wire Output for target debugging in addition to allowing application programming and debugging of on-chip and off-chip Flash devices as in standard JTAG.
The standard JTAG 20-pin connector works with the Keil ULINK and many third party tool vendors. The Cortex Debug connector works with the Keil ULINK2 adapter.
