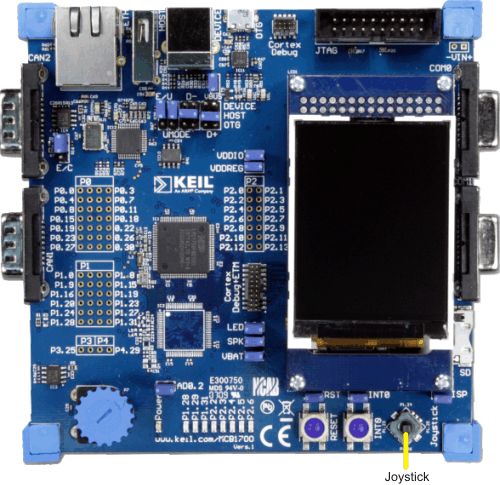

The 5-position joystick control on the MCB1700 board grounds one of 5 possible port pins depending on how the the joystick control handle is positioned. The control may be positioned left, right, up, down or pushed toward the board (select).
- The Left joystick position connects pin C to port pin P1.26 of the LPC17xx device to ground.
- The Right joystick position connects pin B to port pin P1.24 of the LPC17xx device to ground.
- The Up joystick position connects pin A to port pin P1.23 of the LPC17xx device to ground.
- The Down joystick position connects pin D to port pin P1.25 of the LPC17xx device to ground.
- The Select joystick position connects the Cntr pin to port pin P1.20 of the LPC17xx device to ground.
