MCB1700 User's Guide
Introduction
Setup
Theory of Operation
Block Diagram
Schematics
Technical Data
Prototyping Area
Microcontroller
Power Supply
JTAG Interface
ETM Interface
LCD Panel
LEDs
Push Buttons
Joystick
Potentiometer
Speaker
Serial Ports
CAN Interface
USB Interface
Ethernet Interface
MicroSD Connector
Writing Programs
Example Programs
Push Buttons

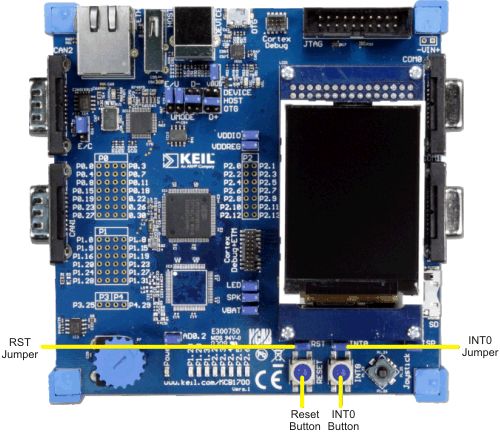

The two push buttons on the MCB1700 board are:
- The RESET push button connects to the reset circuit. This resets the microcontroller. Removing the RST jumper disables this button.
- The INT0 push button connects to the external interrupt 0 (INT0) of the microcontroller. Removing the INT0 jumper disables this button.
