Push Buttons

The 4 push buttons on the MCB1200 board are:

  • The RESET push button grounds the RESET pin (PIO0_13) which resets the microcontroller.
  • The ISP push button grounds PIO0_12 pin on the microcontroller.
  • The PIO0_10 and PIO0_11 push buttons are for general purpose use. They ground pins PIO0_10 or PIO0_11, respectively.

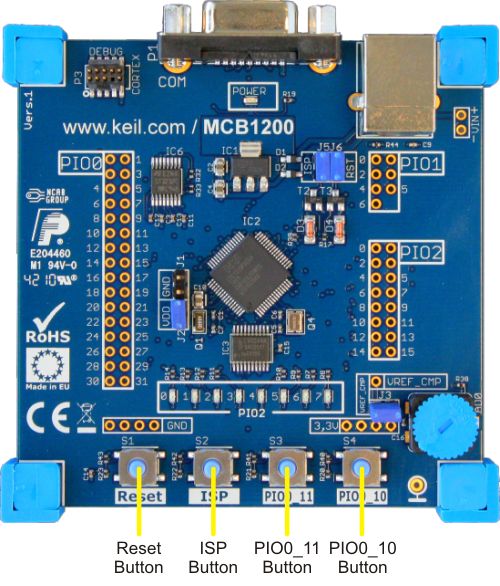

MCB1200 Board Buttons
