MCB1000 User's Guide

USB Interface

All MCB1000 boards contain a standard USB "B" connector that supplies power to the MCB1000 board.

Note

  • Only the MCB1343 version of the board is capable of USB host or device operation.

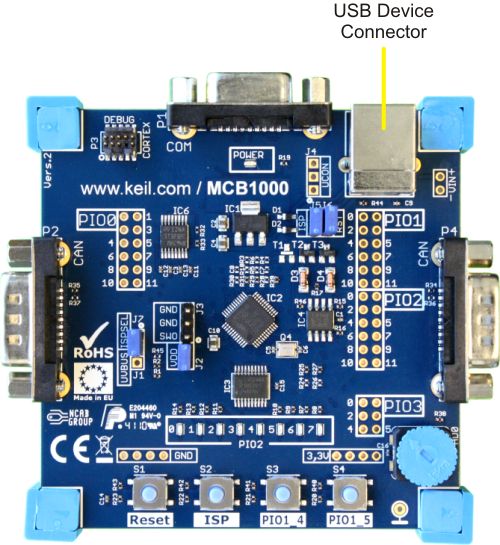

MCB1000 Board USB Connector
