MCB1000 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Access Microcontroller Power Supply Cortex Debug Interface LEDs Push Buttons Serial Port CAN Interface USB Interface Writing Programs Example ProgramsPower Supply

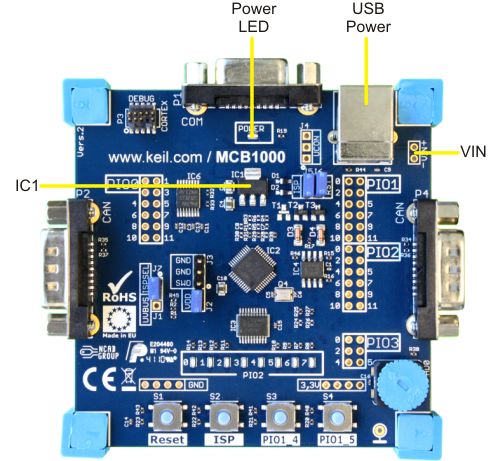

Power is supplied to the MCB1000 board from your PC using a standard USB B connector, or from an external 5VDC power supply connected at VIN+ and VIN-.
The voltage regulator (IC1) regulates USB or VIN voltage to 3.3VDC.
The Power LED indicates that 5VDC power is present on the board.
Caution: Do not attach additional power supplies (such as batteries) while the USB supplies power to the MCB1000. This may harm your PC!
