LEDs

The LEDs on the MCB1xxx boards are:

  • The POWER LED indicates that +5VDC power is present on the board.
  • The 8 Port LEDs marked 0 - 7 connect to port pins on the MCU.
    • For the MCB11xx, MCB11Cxx and MCB13xx boards, the LEDs connect to PIO2.0 - PIO2.7.
    • For the MCB11U10 board, the LEDs connect to PIO1.19 - PIO1.26.
    The Port LEDs are useful for indicating program status while testing your applications.

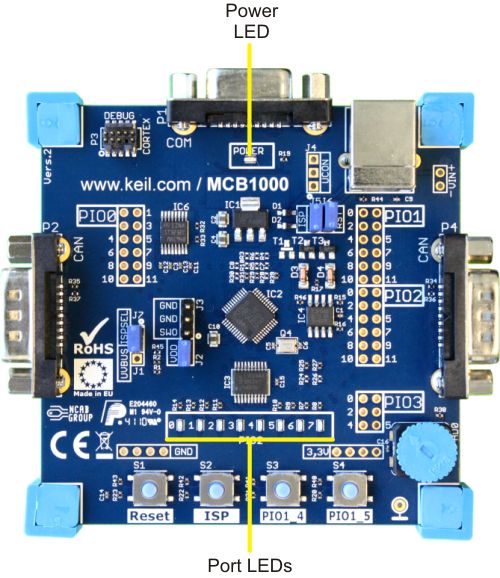

MCB1000 Board LEDs
