Downloading with the Flash Magic utility requires the following steps to download code to the LPC11C14's on-chip Flash ROM.

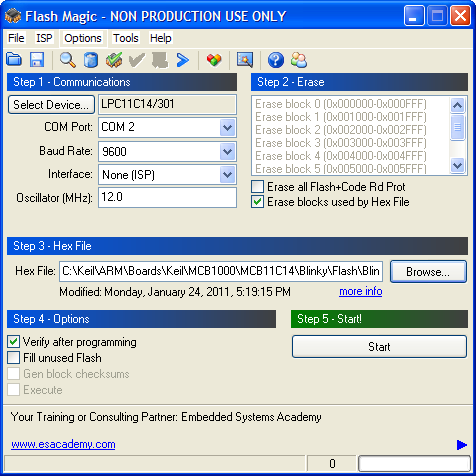

To configure the MCB1000 Evaluation Board for Flash programming, select and start Programs — Flash Magic — Flash Magic.
-
Select COM 2 for the COM Port, specify 9600 as the Baud Rate, and select the Device depending on the board you have. For example, if you have the MCB11C14 board, select LPC11C14/301.
Enable Erase blocks used by Hex File.
-
Select the Hex File, for example: C:\KEIL\ARM\BOARDS\KEIL\MCB1000\MCB11C14\BLINKY\BLINKY.HEX.
-
In the Options — Advanced
Options dialog, select the Hardware Config tab, then
check the Use DTR and RTS to control RST and ISP pin check
box.
-
Click Start to download the Hex File into the Flash ROM of the LPC11C14.
In case of errors, check the COM connection and jumper settings
Note
- Jumpers J5 and J6 must be ON for Serial ISP downloading.
