L251 User's Guide
L251 Introduction Purpose of the Linker
Combining Modules Searching Libraries Combining Segments Locating Segments Overlaying Data Memory Resolving Externals Calculating Addresses Generating an Object File Generating a Listing File Memory Classes Classic 8051 Devices Extended 8051 Devices NXP 51MX Devices 251 Devices BIT, DATA, and IDATA CODE and CONST XDATA HDATA HCONST ECODE Segments
Linking Programs Locating Program Objects Data Overlaying Error MessagesL251 Introduction
The L251 Linker/Locator creates an absolute object module by linking together object modules created using the Keil A251 Assembler and C251 Compiler. Object modules created by these tools are relocatable and cannot be directly executed (even if they consist of only one source module). They must be linked and converted into an absolute object modules using the linker.

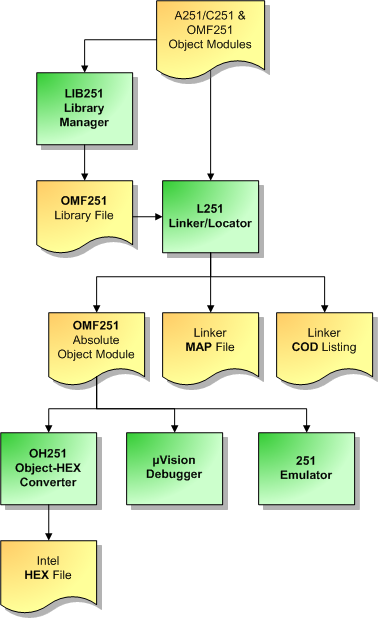

The following figure shows how C251 object modules flow through the Keil tool chain.
The L251 Linker works with object modules created by the following development tools:
- Keil A251 Assembler
- Keil C251 Compiler
