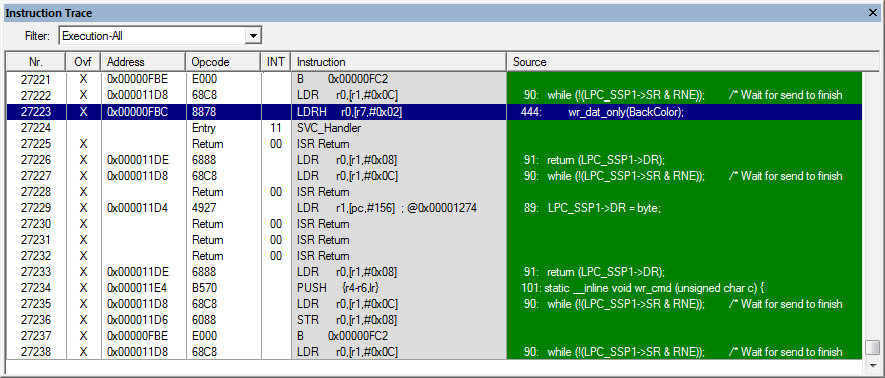

Instruction Trace Window
The Instruction Trace window shows a history of executed instructions. Double-click a line in the Instruction Trace window to open the Disassembly window. Click the right mouse button to open a context menu.
The column names have the following meaning:
| Column Name | Description |
|---|---|
| Nr. | A sequential number, assigned to each executed instruction. |
| Ovf | An X" indicates an overflow. This means that the previous trace record was lost, because the information could not be sent fast enough. |
| Address | The accessed memory address. |
| Opcode | The assembly language op-code in hex. |
| INT | The interrupt number that triggered. |
| Instruction | The assembly code. |
| Source Code | The high-level source code line. |
