EPM900 User's Guide
Introduction Setup
Theory of Operation
Schematics Technical Data Microcontroller LEDs USB Interface DIP Connector Using the EPM900 Example ProgramsLEDs

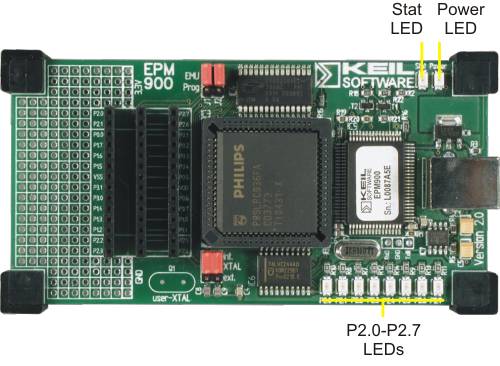

The LEDs on the EPM900 board are:
- The Power LED indicates that power is present on the board.
- The Stat LED indicates the following EPM900 status information:
- USB device detected: ON for 0.3 seconds.
- Start of the µVision debugger: ON.
- User application runs under debugger: OFF.
- Flash programming: ON.
- P2.0 - P2.7 connect to eight Port 2 pins.
The Port 2 LEDs are buffer driven and display status information. The LED driver is disabled by default to avoid oscillation on open device inputs. Enable the Port 2 LEDs in µVision under Project — Options for Target — Debug — EPM900 Settings — Enable P2 LED driver.
